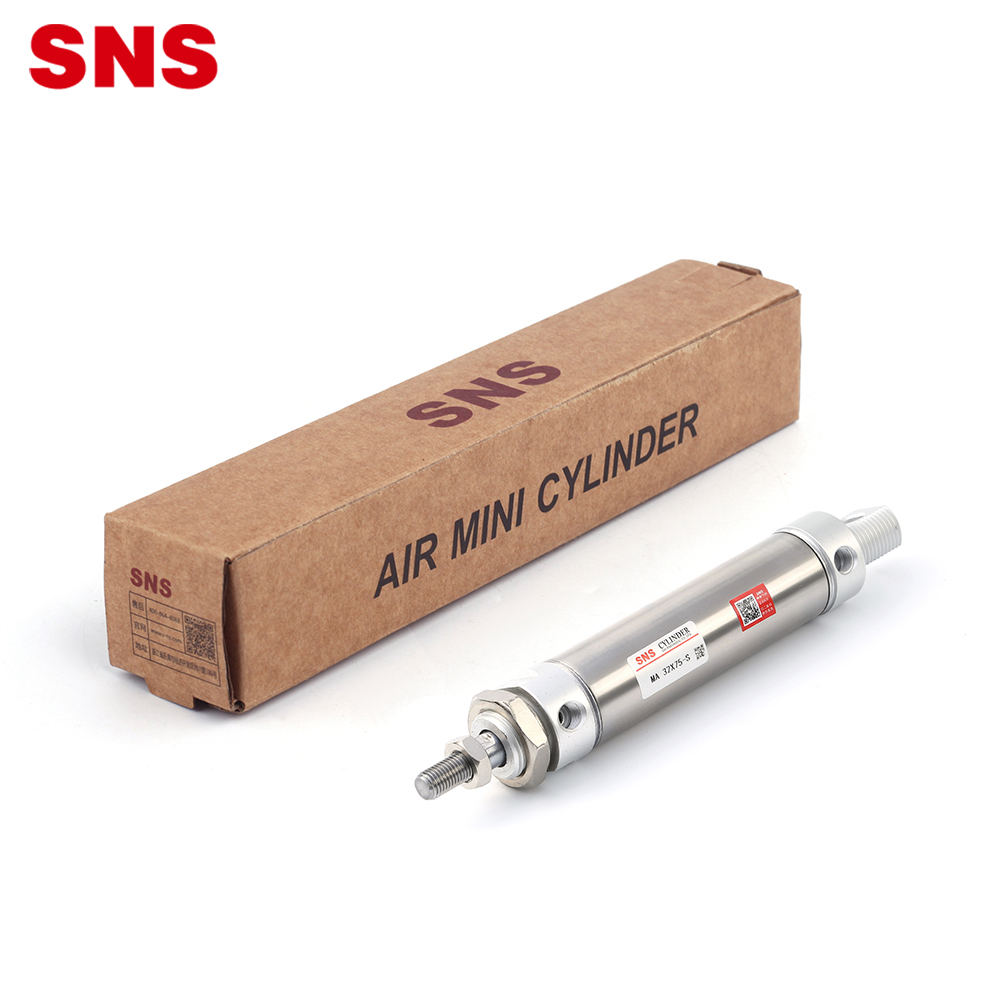

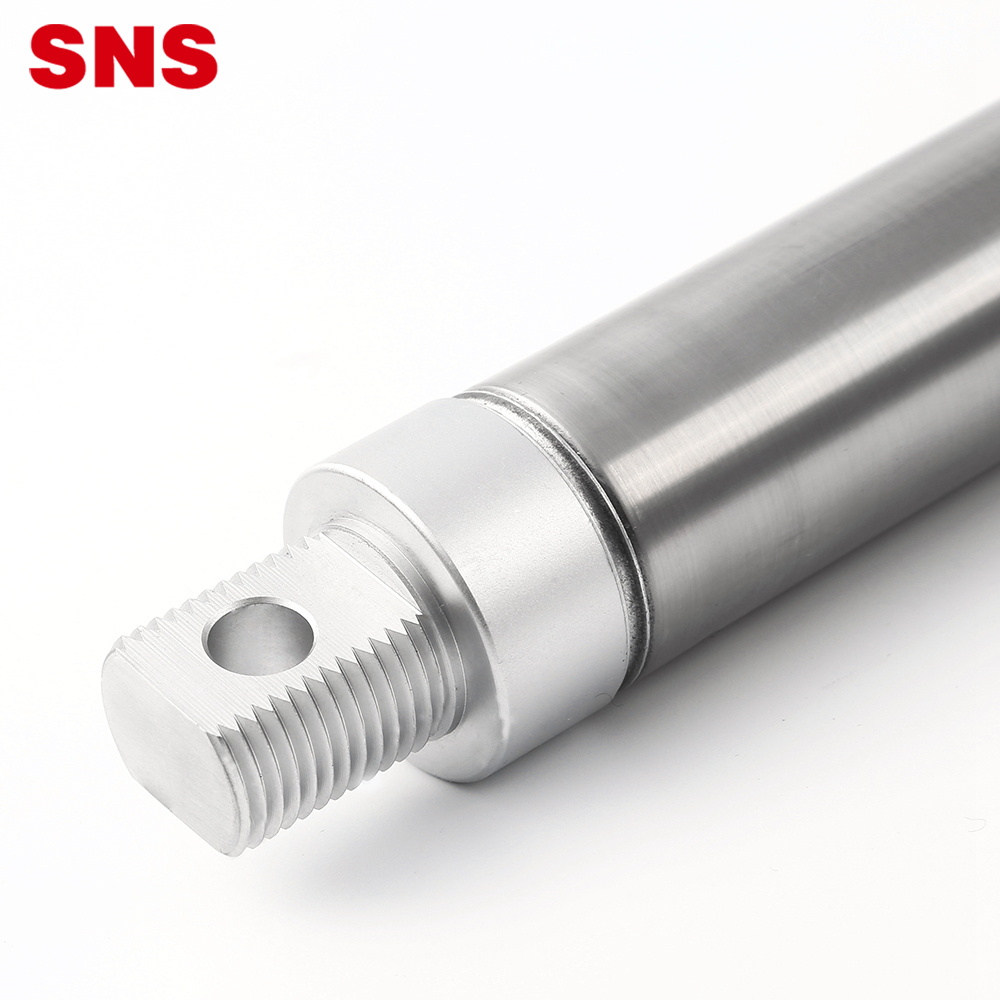

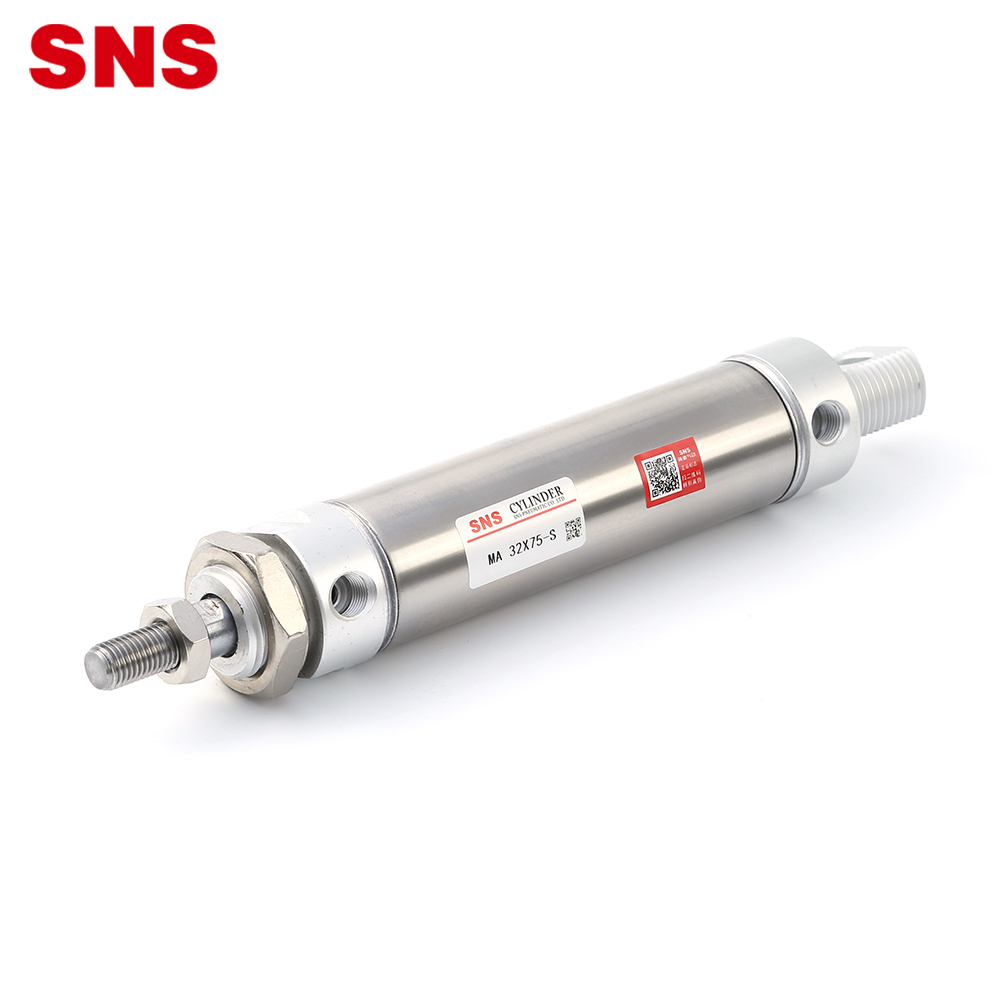

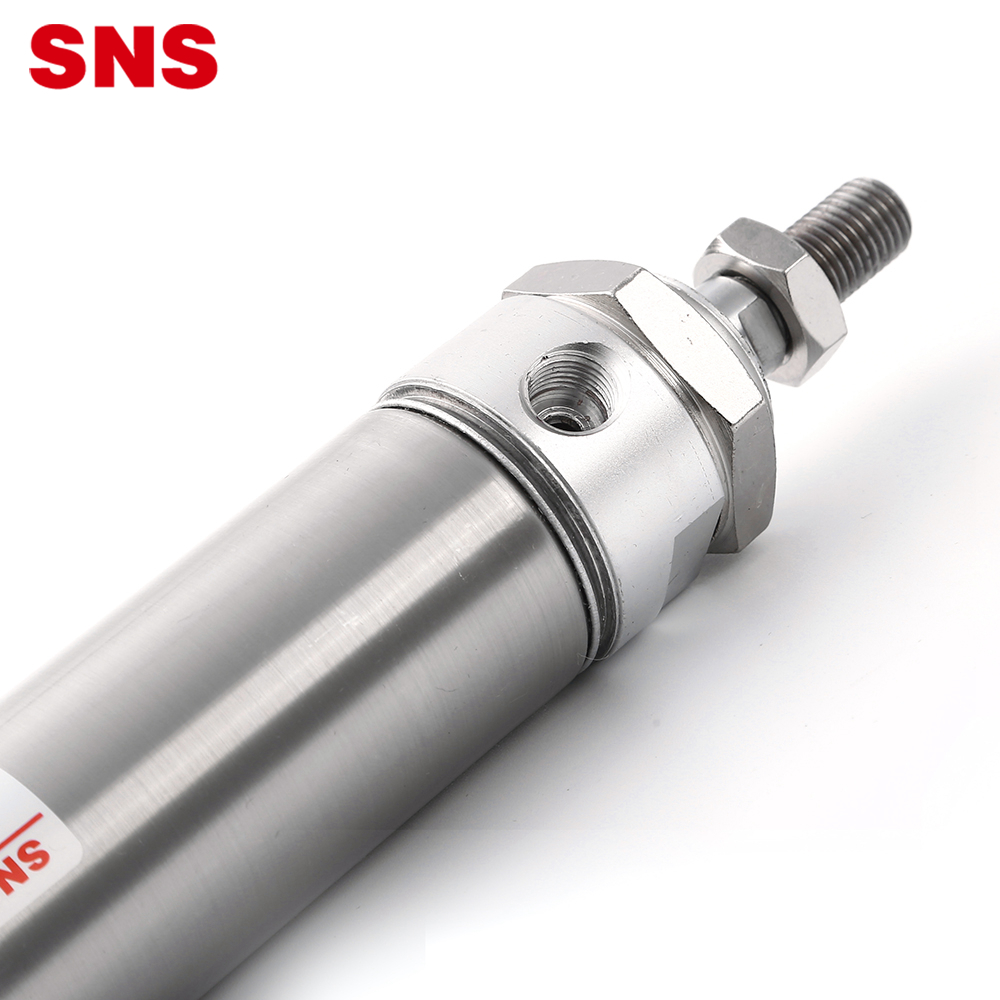

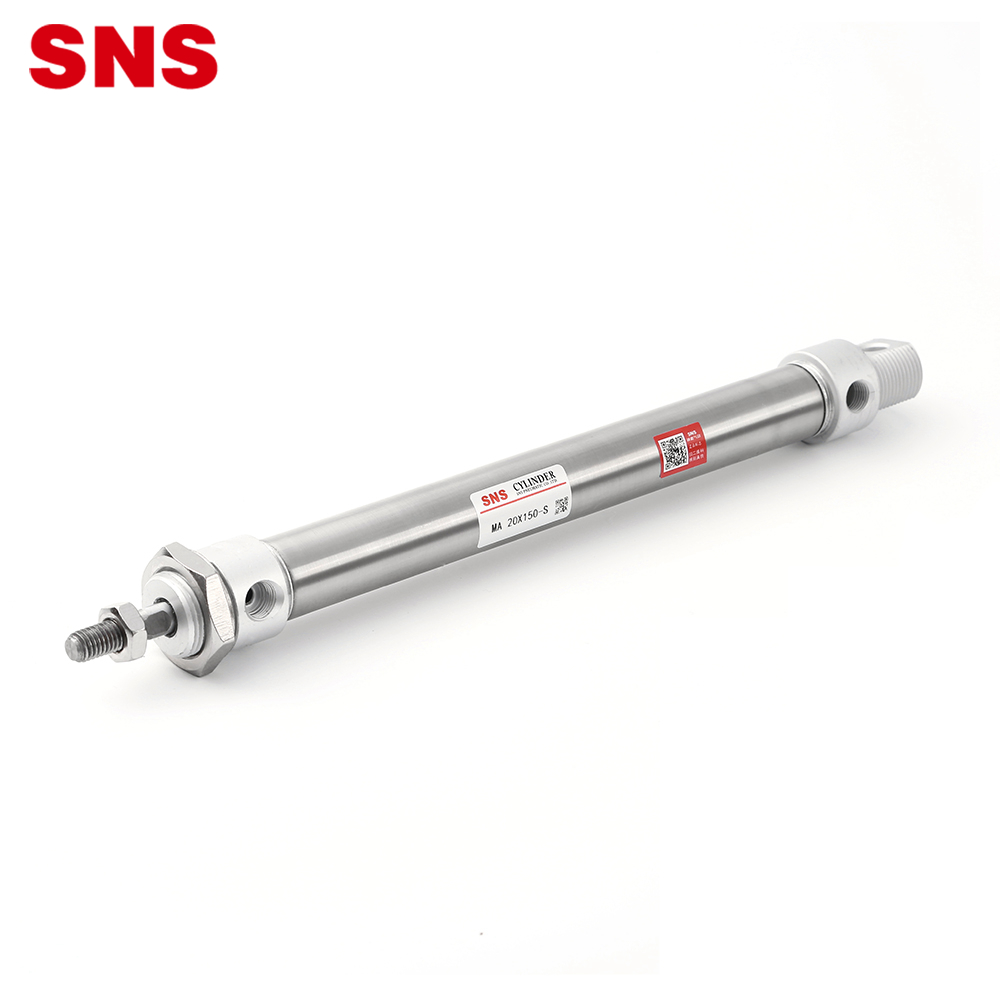

SNS MA Taxanaha jumlada ahama birta mini pneumatic air cylinders

Sharaxaad Gaaban:

Ma Series Small Pneumatic Air Cylinder wuxuu leeyahay saxnaanta cabbirka sare, xajinta sare, xajinta magnetic sare iyo dayactirka muddada dheer, iyo silsiladda MA taxanaha pneumatic waxay ka samaysan tahay aluminium.
1. Daboolka hore iyo kan dambe ee dhululubada yaryar waxaa lagu qalabeeyaa suuf ka hortag ah oo go'an, kaas oo yareyn kara saameynta dhululubada dib u noqoshada;
2. Ma mini cylinder waxay leedahay foomamka daboolka dambe ee kala duwan, taas oo ka dhigaysa rakibaadda dhululubada mid ku habboon;
3. Daboolka hore iyo kan dambe iyo jidhka dhululubada birta ah waxay qaataan qaab dhismeedka xirmada duubista, taas oo la isku halayn karo;
4. Jirka dhululubada wuxuu qaataa tuubo bir ah oo saxan oo qumman oo leh xoog sare iyo iska caabin daxalka;
5. Qeexitaanno kala duwan oo ah qalabyada dhejiska ee mini-cylinder iyo cylinder ayaa diyaar u ah macaamiisha inay doortaan.


Faahfaahinta Alaabta

Tags Product

Cabbirka Boore (mm) 16 20 25 32 40
Habka Ku-simaha Laba jilitaanka
Warbaahinta shaqaynaysa Hawo nadiif ah
Cadaadiska Shaqada 0.1 ~ 0.9Mpa(1~9kgf/cm²)
Caddaynta Cadaadiska 1.35Mpa (13.5kgf/cm²)
Heerkulka shaqada -5 ~ 70 ℃
Habka Buffering Buffer aan la hagaajin karin
Cabbirka Dekedda M5 1/8
Qalabka Jirka Bir daxal laheyn

Cabbirka Boore (mm) Istaroogga caadiga ah (mm) Inta ugu badan Stroke(mm)Max.Stroke(mm) Faalig la Ogol yahay (mm)
12 25 50 75 100 125 150 175 200 250 300 500 800
16 25 50 75 100 125 150 175 200 250 300 500 800
20 25 50 75 100 125 150 175 200 250 300 800 1200
25 25 50 75 100 125 150 175 200 250 300 800 1200
40 25 50 75 100 125 150 175 200 250 300 1200 1500



Cabbirka Boore (mm) A A1 B C D D1 E F G H I J K
16 114 98 38 60 15 16 22 16 10 16 10 5 M6*1
20 137 116 40 76 21 12 28 12 16 20 12 6 M8*1.25
25 141 120 44 76 21 14 30 14 16 22 17 6 M10*1.25
32 147 120 44 76 27 14 30 14 16 22 17 6 M10*1.25
40 149 122 46 76 27 14 32 14 16.7 24 17 19 M12*1.25



Cabbirka Boore (mm) L M P Q R S U V W X AR AX AY
16 M6*1.5 14 6 12 14 9 21 6 5 M5 6 25 22
20 M22*1.5 10 8 16 19 12 27 8 6 G1/8 7 33 29
25 M22*1.5 12 8 16 19 12 30 10 8 G1/8 7 33 29
32 M24*2.0 12 10 16 25 15 35 12 10 G1/8 8 37 32
40 M30*2.0 12 12 20 25 15 41.3 16 14 G1/8 9 47 41
