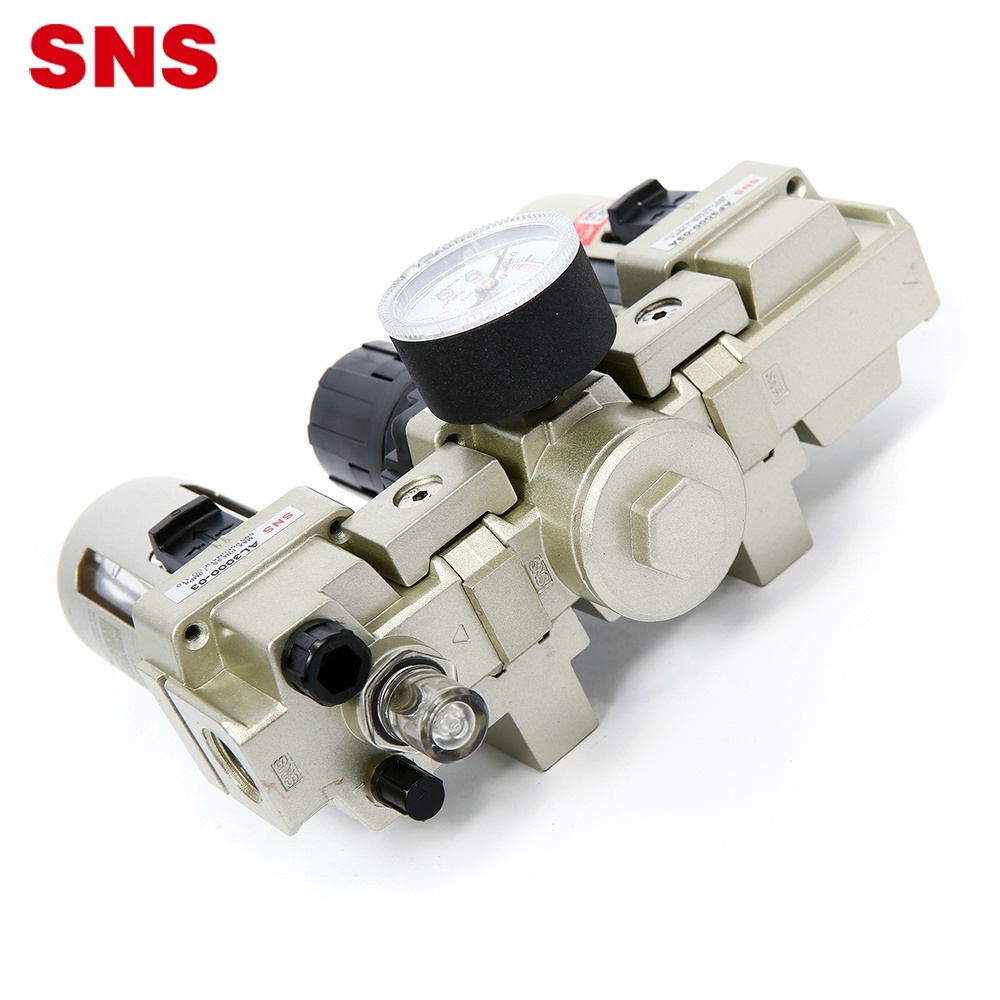

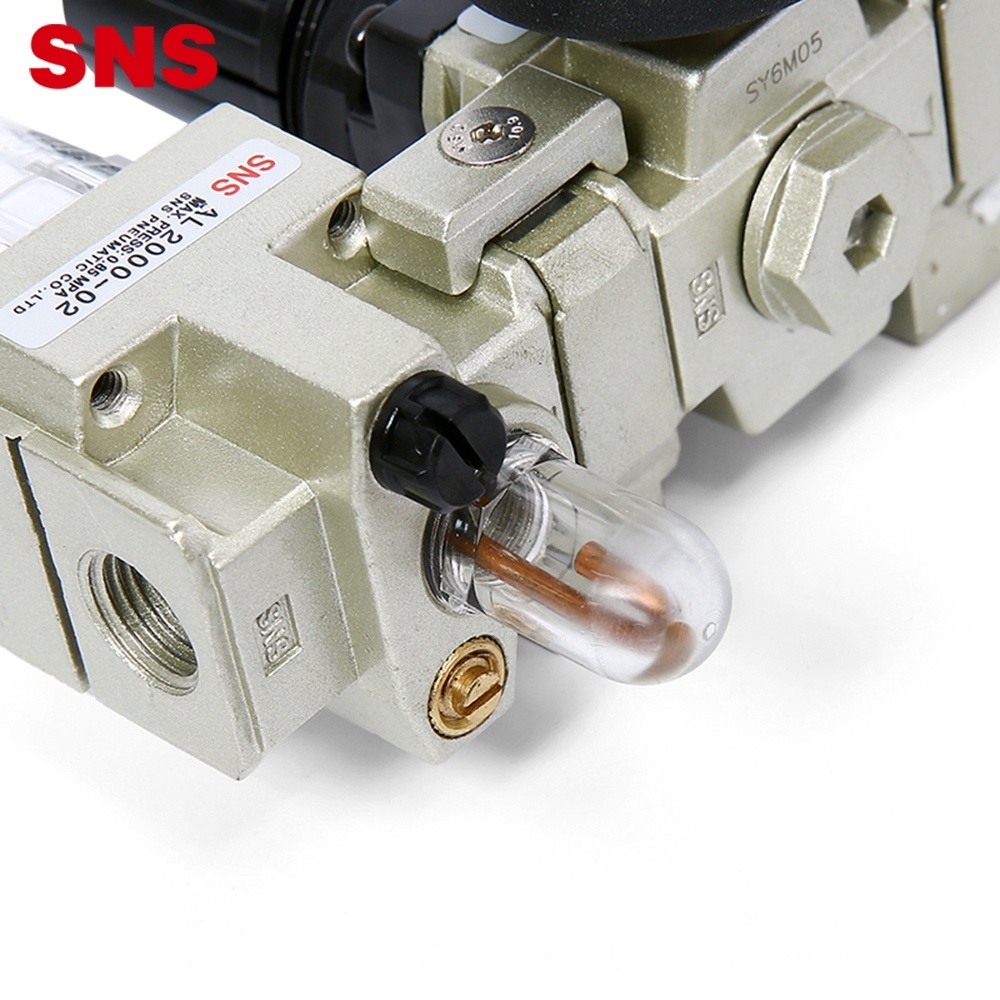

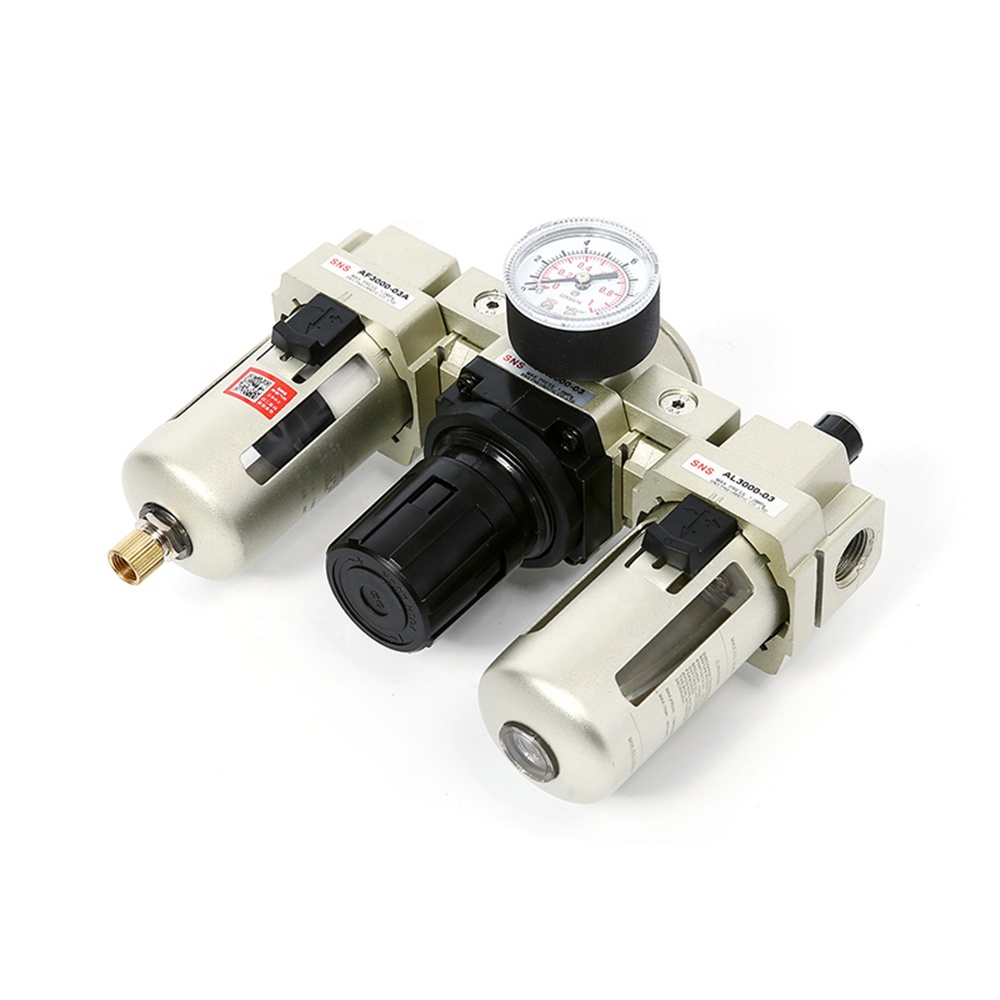

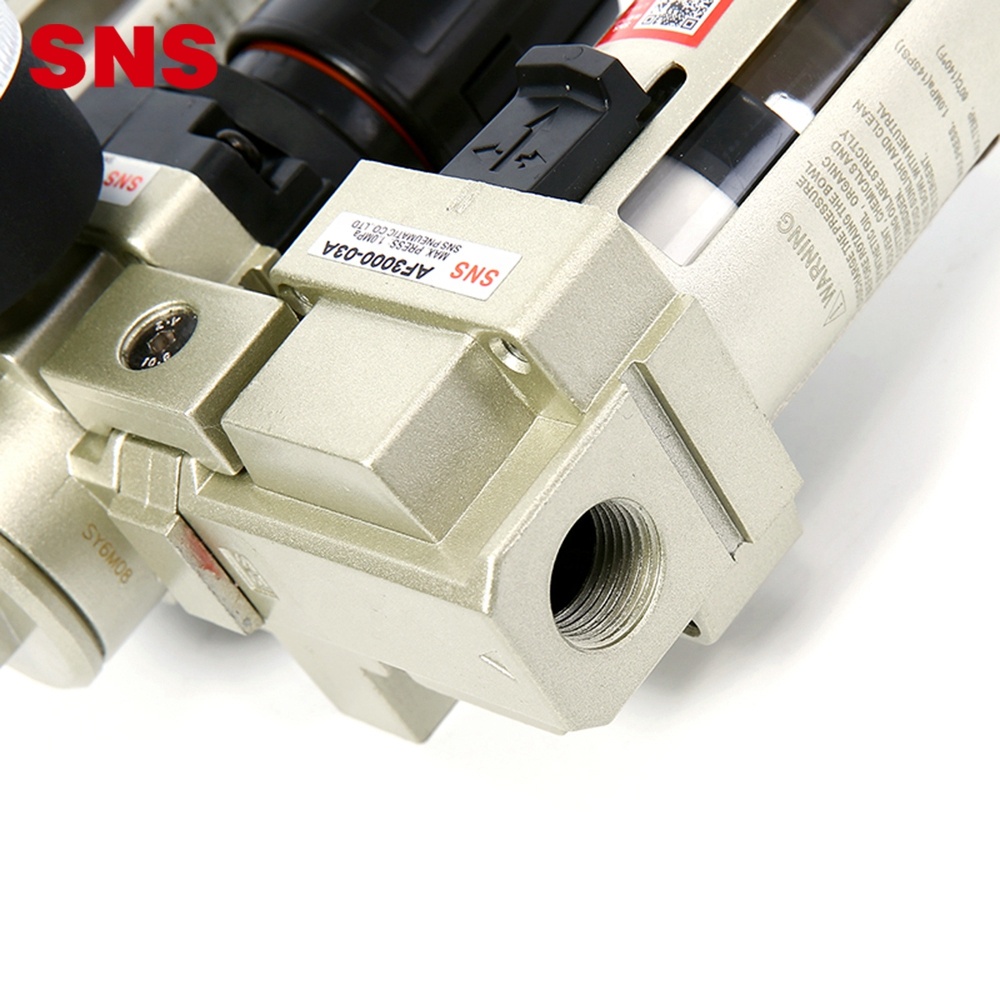

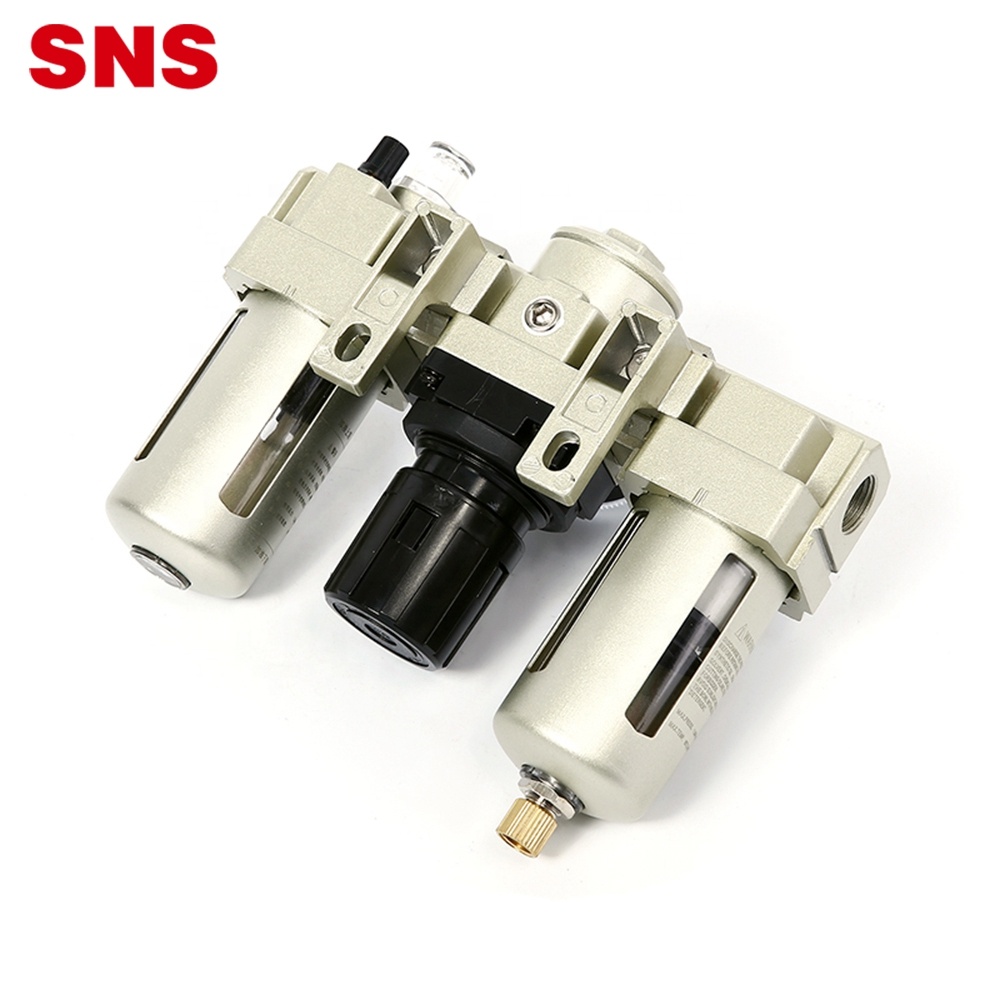

SNS pneumatic AC Series FRL unugga isha hawo daawaynta isku darka hawo shaandhaynta cadaadiska hawada iyo saliidaha

Sharaxaad Gaaban:

1, Dhexdhexaadiyaha shaqada ee processor-ka isha gaaska waa inuu isticmaalo hawo nadiif ah oo qalalan, hawada tuubooyinka waa in si buuxda loo afuufo si looga hortago wasakhda inay soo gasho nidaamka oo ay keento ficil xun ee dhululubada iyo valves.Ceeryaanka shidaalka ee nidaamka tuubooyinka waa in la subkay.
2, Ka dib markii processor-ka isha hawada uu ilaaliyo shaqada caadiga ah ee nidaamka, waxaa lagama maarmaan ah in la hubiyo xaaladaha shaqada ee filtarrada hawada iyo ceeryaamaha saliidda si joogto ah, iyo in la daadiyo oo lagu shubo biyaha waqtigeeda.
3, Inta badan hubi hawlgalka qaybaha kala duwan ee pneumatic, hubi in boolal-xidhka dabacsan yihiin?Ma jiraan wax dhaawac ah ama daadasho ah oo ku yimi shaabaddii curiyaha?
4, Marka la dayactirayo, waxaa lagama maarmaan ah in la xiro isha gaaska ka hor iyo faaruqinta hawada cadaadisay ee nidaamka dhuumaha ka hor inta aan la fulin shaqada dayactirka.
5,Qaybaha waa in la nadiifiyaa marka la hagaajinayo iyo dib u habeynta, wasakhdana aan la soo gelin nidaamka.


Faahfaahinta Alaabta

Tags Product

Qaabka AC1000-M5 AC2000-01 AC2000-02 AC2500-02 AC2500-03 AC3000-02 AC3000-03
Module Shaandhayso AF1000 AF2000 AF2000 AF2500 AF2500 AF3000 AF3000
Maamule AR1000 AR2000 AR2000 AR2500 AR2500 AR3000 AR3000
Saliideeyaha AL1000 AL2000 AL2000 AL2500 AL2500 AL3000 AL3000
Cabbirka Dekedda M5×0.8 PT1/8 PT1/4 PT1/4 PT3/8 PT1/4 PT3/8
Cabirka Dekadda Cadaadiska M5×0.8 PT1/8 PT1/8 PT1/8 PT1/8 PT1/8 PT1/8
Socodka la qiimeeyay (L/min) 90 500 500 1500 1500 2000 2000
Warbaahinta shaqaynaysa Hawo cadaadis leh
Caddaynta Cadaadiska 1.5Mpa
Range of Regulation 0.05 ~ 0.7Mpa 0.05 ~ 0.85Mpa
Heerkulka deegaanka 5 ~ 60℃
Sifee saxnaanta 40 μm (Caadi) ama 5 μm (la habeeyey)
Saliid Saliid ah oo la soo jeediyay Turbine NO.1 Saliid (ISO VG32)
Bracket (laba) Y10L Y20L Y30L
Cabirka Cadaadiska Y25-M5 Y40-01
Qalab Qalabka Jirka Aluminium Aloy
Qalabka koobka PC
Daboolka Koobka AC1000-AC2000: aan lahayn AC2500 ~ AC5000: leh (Iron)



Qaabka AC4000-03 AC4000-04 AC4000-06 AC5000-06 AC5000-10
Module Xakamaynta shaandhaynta AF4000 AF4000 AF4000 AF5000 AF5000
Maamule AR4000 AR4000 AR4000 AR5000 AR5000
Saliideeyaha AL4000 AL4000 AL4000 AL5000 AL5000
Cabbirka Dekedda PT3/8 PT1/2 G3/4 G3/4 G1
Cabirka Dekadda Cadaadiska PT1/4 PT1/4 PT1/4 PT1/4 PT1/4
Socodka la qiimeeyay (L/min) 4000 4000 4500 5000 5000
Warbaahinta shaqaynaysa Hawo cadaadis leh
Caddaynta Cadaadiska 1.5Mpa
Range of Regulation 0.05 ~ 0.85Mpa
Heerkulka deegaanka 5 ~ 60℃
Sifee saxnaanta 40 μm (Caadi) ama 5 μm (la habeeyey)
Saliid Saliid ah oo la soo jeediyay Turbine NO.1 Saliid (ISO VG32)
Bracket (hal) Y40L Y50L Y60L
Cabirka Cadaadiska Y50-02
Qalab Qalabka Jirka Aluminium Aloy
Qalabka koobka PC
Daboolka Koobka AC1000-AC2000: aan lahayn AC2500 ~ AC5000: leh (Iron)

Xusuusin: socodka la qiimeeyay waa inuu hoos yimaadaa cadaadiska 0.7Mpa.

Qaabka Cabbirka Dekedda A B C D E F G H J K L M N P
AC1000 M5×0.8 91 84.5 25.5 25 26 25 33 20 4.5 7.5 5 17.5 16 38.5
AC2000 PT1/8,PT1/4 140 125 38 40 56.8 30 50 24 5.5 8.5 5 22 23 50
AC2500 PT1/4,PT3/8 181 156.5 38 53 60.8 41 64 35 7 11 7 34.2 26 70.5
AC3000 PT1/4,PT3/8 181 156.5 38 53 60.8 41 64 35 7 11 7 34.2 26 70.5
AC4000 PT3/8,PT1/2 283 191.5 41 70 65.5 50 84 40 9 13 7 42.2 33 88
AC4000-06 G3/4 253 193 40.5 70 69.5 50 89 40 9 13 7 46.2 36 88
AC5000 G3/4,G1 300 271.5 48 90 75.5 70 105 50 12 16 10 55.2 40 115

Fiiro gaar ah: Qiimaha B wuu ka duwanaan doonaa moduleka dheecaanka kala duwan, faahfaahin dheeraad ah fadlan la xiriir iibka.
